Linear LED Lights

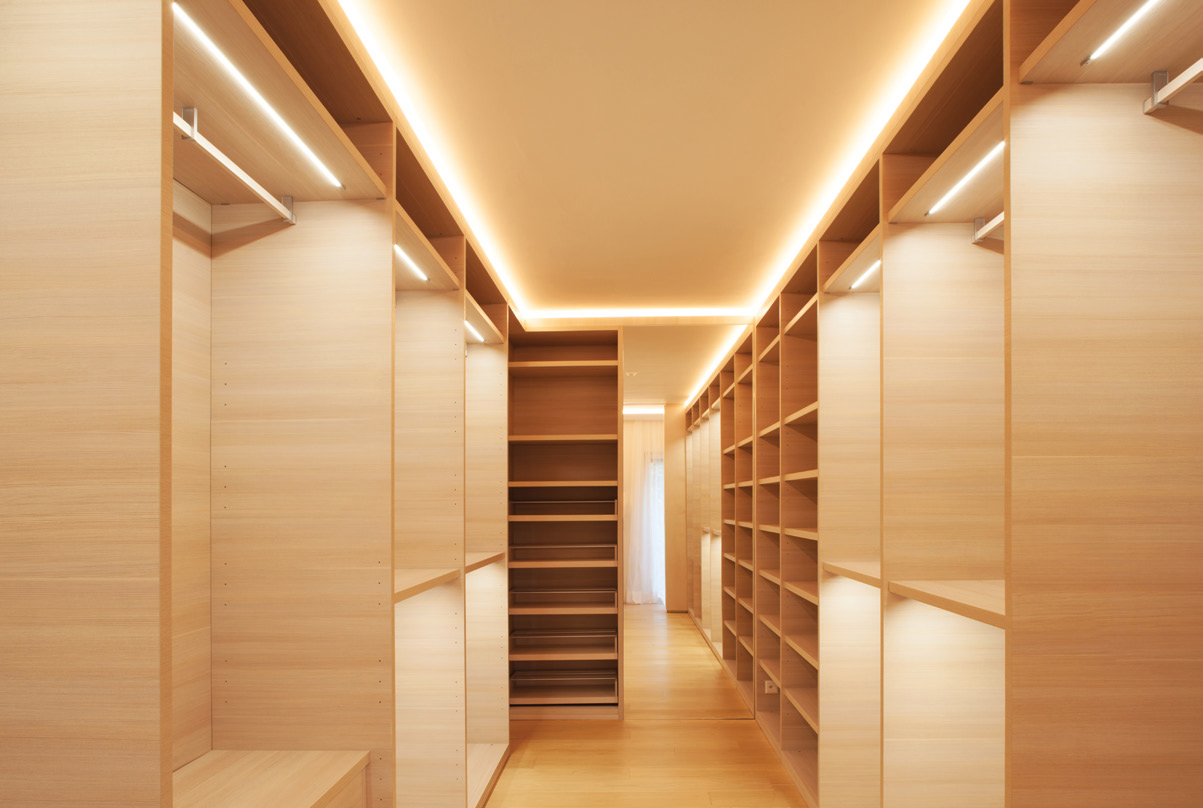

Our 120V linear led light series works without the led driver. It is a true plug-and-play lighting solution. Long and narrow, it is the unobtrusive way to provide smooth, linear lighting. Great for displays, cabinets & shelves.

SPECIFICATIONS:

Linkable: 10Pcs MaxImex Hardware
Surface Mounted
120VAC Direct Connection
Output power:  12": 2.6 W.
                            16": 3.0 W.
Luminous flux:  12": 190 Lumens.
                            16": 240 Lumens.

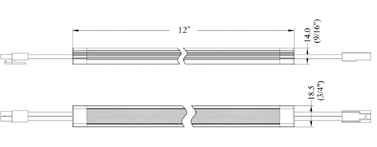

Size:                   12": L 305 x W 18.5 x H 14.4 mm.

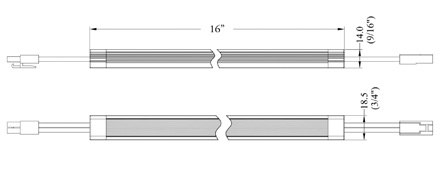

                            16": L 405  x W 18.5 x H 18 mm.
CRI: 80+
Color Temp: 3000K/ 4000K/ 6000K
Material: Aluminum+PC
Lens: Diffused Frosted Lens
Energy savings of 85%
UL Listed
Rated Life: 50,000 Hours
Warranty: 3 Year Limited Warranty

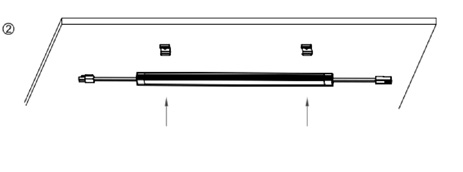

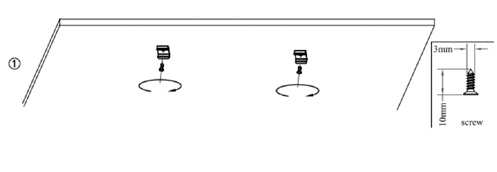

INSTALLATION:

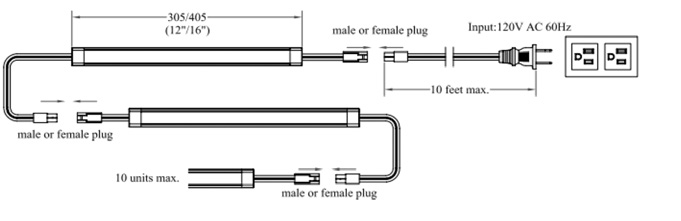

• For surface installation to
a maximum of 10 linear
led lights.
• Outlet cable: 0.05 m.
18AWG SPT-2 UL white for
each side and with male
and female plug, with 2pcs
fixing bracket.
• No power supplies
needed,direct connected
with 120 VAC.
